Android开发学习笔记 Gallery和GridView浅析(5)

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
  android:orientation="vertical"
  android:layout_width="fill_parent"
  android:layout_height="fill_parent"
  >
  <GridView
    android:id="@+id/GridView1"
    android:layout_width="wrap_content"
    android:layout_height="wrap_content"
    android:columnWidth="90dp"
    android:numColumns="3"
    android:verticalSpacing="10dp"
    android:horizontalSpacing="10dp"
    android:stretchMode="columnWidth"
    android:gravity="center"
    />
</LinearLayout>

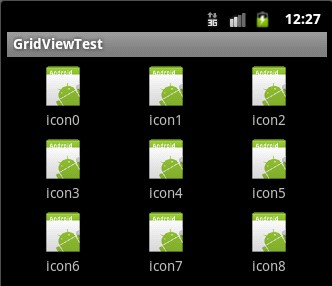

package com.android.gridview2.activity;

import java.util.ArrayList;
import java.util.HashMap;
import java.util.List;
import java.util.Map;
import android.app.Activity;
import android.os.Bundle;
import android.widget.GridView;
import android.widget.SimpleAdapter;

public class MainActivity extends Activity {

    private GridView gv;
    @Override
    protected void onCreate(Bundle savedInstanceState) {
     // TODO Auto-generated method stub
     super.onCreate(savedInstanceState);
     setContentView(R.layout.gridview);

     //准备要添加的数据条目
     List<Map<String, Object>> items = new ArrayList<Map<String,Object>>();
     for (int i = 0; i < 9; i++) {
      Map<String, Object> item = new HashMap<String, Object>();
      item.put("imageItem", R.drawable.icon);//添加图像资源的ID
      item.put("textItem", "icon" + i);//按序号添加ItemText
      items.add(item);
     }

     //实例化一个适配器
     SimpleAdapter adapter = new SimpleAdapter(this,
                           items,
                           R.layout.grid_item,
                           new String[]{"imageItem", "textItem"},
                           new int[]{R.id.image_item, R.id.text_item});

     //获得GridView实例
     gv = (GridView)findViewById(R.id.mygridview);
     //为GridView设置适配器
     gv.setAdapter(adapter);

    }
}

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
  android:layout_width="wrap_content"
  android:layout_height="wrap_content"
  >
  <GridView
   android:id="@+id/mygridview"
   android:numColumns="3"
   android:gravity="center_horizontal"
   android:layout_width="wrap_content"
   android:layout_height="wrap_content"
   android:stretchMode="columnWidth"
   />
</LinearLayout>

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
  android:id="@+id/RelativeLayout1"
  android:layout_width="wrap_content"
  android:layout_height="fill_parent"
  android:paddingBottom="6dip"
  >
  <ImageView
   android:id="@+id/image_item"
   android:layout_width="wrap_content"
   android:layout_height="wrap_content"
   android:layout_centerHorizontal="true"
   />
  <TextView
   android:id="@+id/text_item"
   android:layout_below="@+id/image_item"
   android:layout_height="wrap_content"
   android:layout_width="wrap_content"
   android:layout_centerHorizontal="true"
   />
</RelativeLayout>

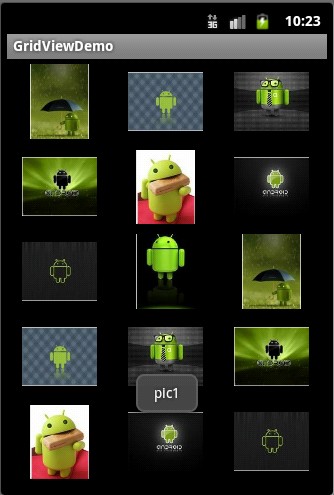

package com.android.gridview3;

import java.util.ArrayList;
import java.util.List;
import android.app.Activity;
import android.content.Context;
import android.os.Bundle;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.AdapterView;
import android.widget.BaseAdapter;
import android.widget.GridView;
import android.widget.ImageView;
import android.widget.TextView;
import android.widget.Toast;
import android.widget.AdapterView.OnItemClickListener;

public class MainActivity extends Activity
{
  private GridView gridView;
  //图片的文字标题
  private String[] titles = new String[]
  { "pic1", "pic2", "pic3", "pic4", "pic5", "pic6", "pic7", "pic8", "pic9"};
  //图片ID数组
  private int[] images = new int[]{
      R.drawable.pic1, R.drawable.pic2, R.drawable.pic3,
      R.drawable.pic4, R.drawable.pic5, R.drawable.pic6,
      R.drawable.pic7, R.drawable.pic8,R.drawable.pic9
  };

  @Override
  public void onCreate(Bundle savedInstanceState){
    super.onCreate(savedInstanceState);
    setContentView(R.layout.main);
    gridView = (GridView) findViewById(R.id.gridview);
    PictureAdapter adapter = new PictureAdapter(titles, images, this);
    gridView.setAdapter(adapter);

    gridView.setOnItemClickListener(new OnItemClickListener()
      {
        public void onItemClick(AdapterView<?> parent, View v, int position, long id)
        {
          Toast.makeText(MainActivity.this, "pic" + (position+1), Toast.LENGTH_SHORT).show();
        }
      });
  }
}
//自定义适配器
class PictureAdapter extends BaseAdapter{
  private LayoutInflater inflater;
  private List<Picture> pictures;

  public PictureAdapter(String[] titles, int[] images, Context context)
  {
    super();
    pictures = new ArrayList<Picture>();
    inflater = LayoutInflater.from(context);
    for (int i = 0; i < images.length; i++)
    {
      Picture picture = new Picture(titles[i], images[i]);
      pictures.add(picture);
    }
  }

  @Override
  public int getCount()
  {
    if (null != pictures)
    {
      return pictures.size();
    } else
    {
      return 0;
    }
  }

  @Override
  public Object getItem(int position)
  {
    return pictures.get(position);
  }

  @Override
  public long getItemId(int position)
  {
    return position;
  }

  @Override
  public View getView(int position, View convertView, ViewGroup parent)
  {
    ViewHolder viewHolder;
    if (convertView == null)
    {
      convertView = inflater.inflate(R.layout.picture_item, null);
      viewHolder = new ViewHolder();
      viewHolder.title = (TextView) convertView.findViewById(R.id.title);
      viewHolder.image = (ImageView) convertView.findViewById(R.id.image);
      convertView.setTag(viewHolder);
    } else
    {
      viewHolder = (ViewHolder) convertView.getTag();
    }
    viewHolder.title.setText(pictures.get(position).getTitle());
    viewHolder.image.setImageResource(pictures.get(position).getImageId());
    return convertView;
  }

}

class ViewHolder
{
  public TextView title;
  public ImageView image;
}

class Picture
{
  private String title;
  private int imageId;

  public Picture()
  {
    super();
  }

  public Picture(String title, int imageId)
  {
    super();
    this.title = title;
    this.imageId = imageId;
  }

  public String getTitle()
  {
    return title;
  }

  public void setTitle(String title)
  {
    this.title = title;
  }

  public int getImageId()
  {
    return imageId;
  }

  public void setImageId(int imageId)
  {
    this.imageId = imageId;
  }
}
